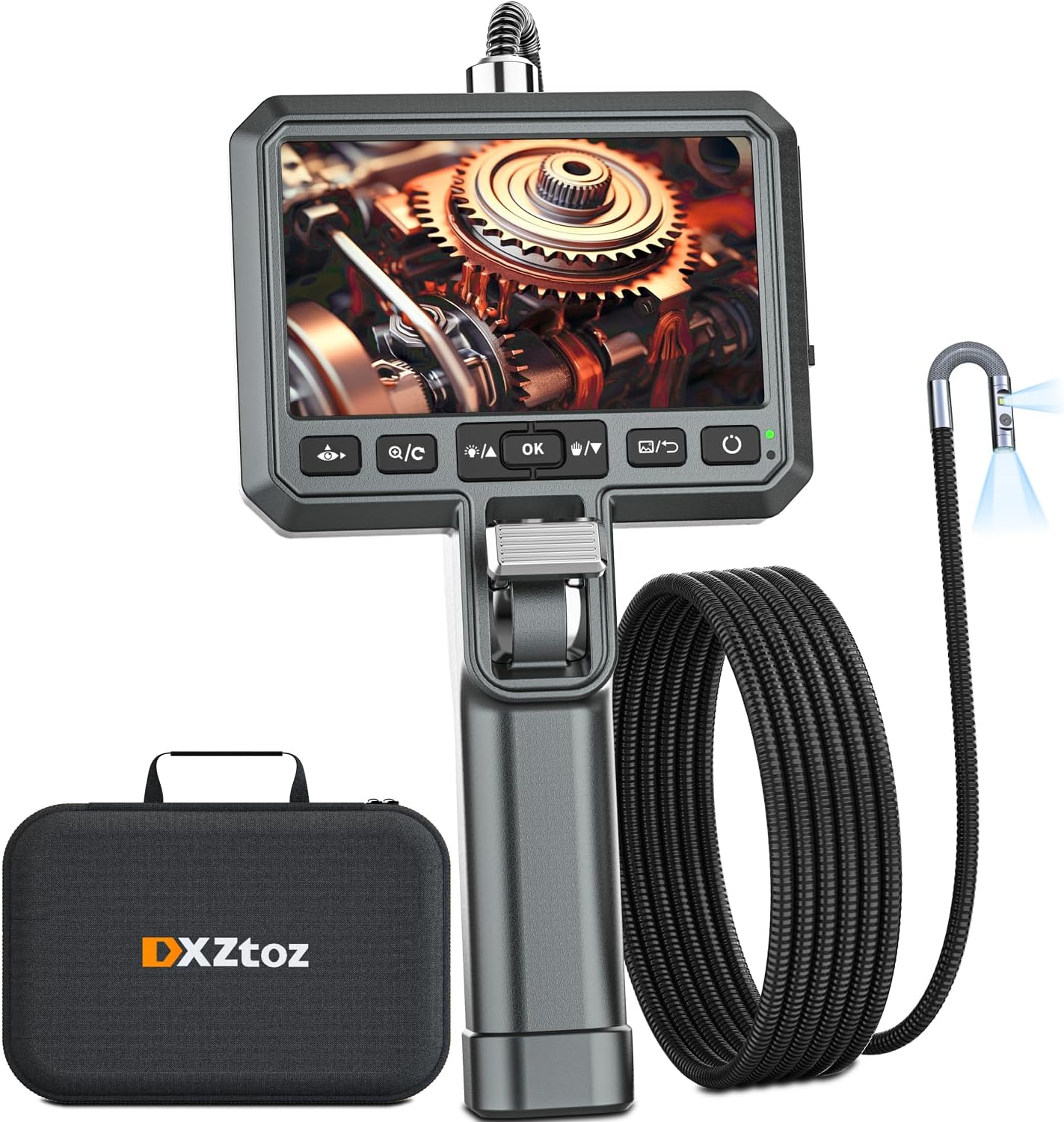

DXZtoz Dual-Lens Articulating Borescope Review: A Steady-Steering Inspection Camera Under $50

If you have ever fought a borescope cable that snakes everywhere except where you need it, the DXZtoz Dual-Lens Articulating Borescope is built to fix that exact frustration. The joystick steers a slim two-way snake camera through 7 mm access holes and locks the tip in place once you find the right angle.

The DXZtoz dual-lens articulating borescope is a $50-class industrial endoscope with a 5-inch 1080P IPS screen, a 6.5 mm probe, dual front and side cameras, and a split-view mode for viewing both lenses at once. It pairs a hook, a magnet, a 32 GB SD card, and a hard carrying case to make it ready to inspect on day one.

I tested this DXZtoz borescope inside a heating, ventilation, and air conditioning (HVAC) duct and a car engine bay, watched the joystick stay rock steady at full bend, and pulled photos off the SD card to compare with what I saw on screen. The full DXZtoz borescope review on YouTube and the on-bench testing both lined up: this dual-lens articulating endoscope camera earned a spot in my diagnostics drawer.

The short answer: it is one of the best dual-lens inspection cameras you can get for the money, with two real caveats around screen brightness and cable length that the verdict will get into.

What I Liked

After putting the DXZtoz dual-lens articulating borescope through HVAC duct work and an engine bay inspection, five things stand out.

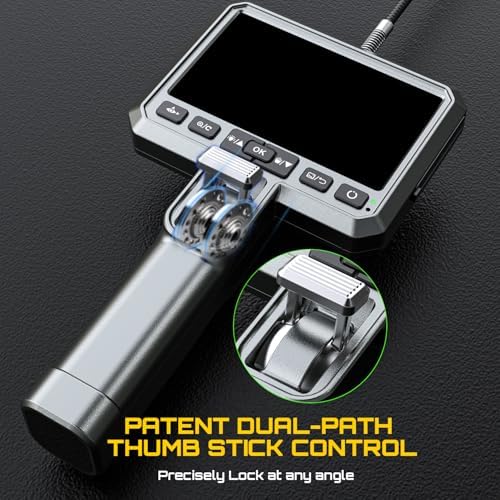

Joystick Articulation That Locks In Place

The thumb-stick on this DXZtoz two-way articulating borescope drives a 210 degree bend at the tip and holds whatever angle you set. I dialed the camera to roughly 180 degrees inside an intake runner and it stayed parked there while I rotated the cable to scan the cylinder wall.

The control mechanism is borrowed from aircraft flap levers, with an aluminum-alloy dual-path linkage that DXZtoz patented. In practice that means slow, predictable motion instead of the spongy thumb wheels you get on cheaper articulating endoscope cameras.

A small lock dial on the handle adds friction so the joystick will not drift while you are concentrating on what is on the 1080p screen. It is the closest thing to a tripod head I have used on an inspection camera. If you prefer to wear gloves during inspection sessions, a thin textured pair like the ASAP Disposable Black Nitrile Gloves preserves enough thumb feel to work the joystick without overshooting.

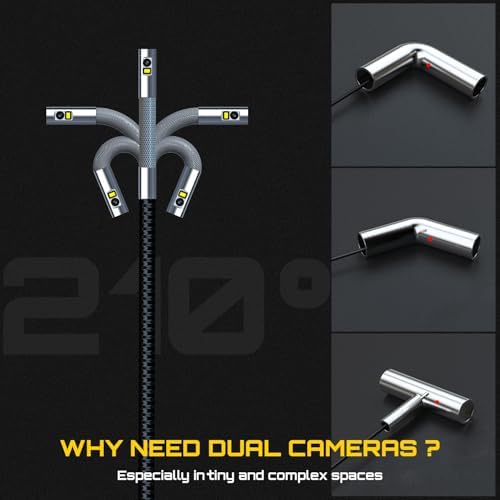

Dual Front And Side Lenses With Split View

This is the dxztoz dual-lens articulating borescope’s headline feature, and it earns the name. The forward lens looks straight ahead like any normal scope, and the second lens points 90 degrees out the side of the snake camera so you can scan walls without rotating the cable.

A dedicated button cycles between front-only, side-only, and a split-screen mode that puts both feeds on the 5-inch HD display at the same time. Inside an HVAC duct that meant I could see the next bend coming and inspect the interior surface in one pass instead of two.

For engine bay work, the side camera let me read part numbers off the back of a sensor housing without having to articulate the tip into the wall behind it. That alone saved me three or four minutes of fishing.

Slim 6.5 mm Probe For Tight Spaces

The 0.25 inch slim probe (about 6.5 mm) drops through any 7 mm access hole, which covers everything from a Cummins injector port to a small drain inspection. Most articulating cameras start at 8 to 8.5 mm, so this is one of the few articulated snake camera options that fits a spark plug well comfortably.

The cable itself is a semi-rigid gooseneck that holds its shape without folding. When you push it into a duct or down a frame rail, it tracks where you point it instead of collapsing on itself.

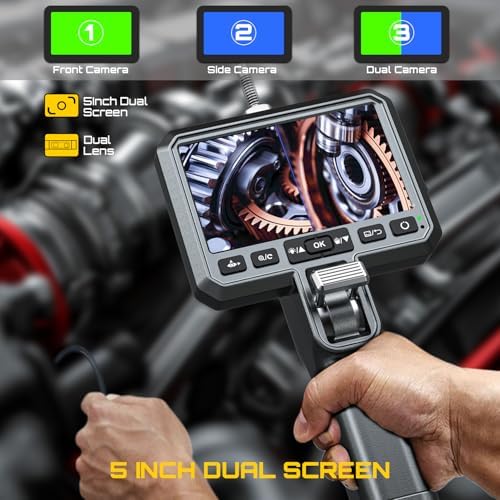

Sharp 5-Inch 1080P Screen With Zoom

The 5-inch IPS screen runs at 1080p, with 10x zoom and a freeze-frame button for documenting damage on the spot. I used the freeze frame to lock in a shot of carbon on a piston crown, then stepped the zoom up in two-times increments until I could read the wear pattern.

Photos and video go straight to the included 32 GB SD card, no app required. When I pulled the card and viewed the JPEGs on a laptop, the captures were noticeably crisper than the live preview, which is good news if you need to send images to a customer.

The eight-LED ring around the front camera has adjustable brightness, so the LED lights dim on a reflective surface like a piston crown and crank back up inside a dark duct.

Ready-To-Work Kit With SD Card And Accessories

The carrying case ships with the screen, handle, articulated probe, USB-C cable, the 32 GB SD card already in the slot, and the hook and magnet attachments. Hooking the magnet onto the tip is what saved me from pulling an intake to fish out a dropped washer last weekend.

The whole kit is waterproof and oil-rated for the probe, so an accidental dunk in coolant does not end your day. For a sub-$50 industrial endoscope, the accessory bundle is more complete than what some $150 competitors include.

What Needs Improvement

The DXZtoz dual-lens articulating borescope nails the core mechanics, but three things keep it from being a true pro-grade tool.

Built-In TFT Screen Looks Duller Than The Saved Photos

The 5-inch panel is bright enough to use in a shop, but the live image on the TFT display has noticeably less contrast than the JPEGs the camera writes to the SD card. I noticed this most when scanning a piston crown: the on-screen preview looked grey, while the same shot on a laptop showed crisp carbon detail.

Independent reviewers have called out the same gap, noting the on-board display is “not the worst, but definitely not the best” compared with higher-end industrial endoscopes. It is not a deal-breaker, but it does mean you might second-guess what you are seeing until you pull the SD card.

Five-Foot Cable Limits Plumbing Reach

The standard kit ships with a 5-foot semi-rigid cable, which is plenty for an engine bay or short HVAC run, but short for plumbing diagnostics. If you are trying to inspect a tub drain that turns through a P-trap and then a 10-foot horizontal run, you will hit the end of the cable before you find the clog.

DXZtoz sells a 10ft articulating borescope variant of the same handle and screen if plumbing reach is your priority. For everyone buying the 5-foot version, plan your inspections around that limit instead of expecting the cable to find another foot it does not have.

Plastic Housing Feels Lighter Than Pro Tools

The handle and screen housing are molded plastic without obvious fiber reinforcement. It survives bench drops in normal use, but it does not have the dense, glove-friendly feel of a Milwaukee or Snap-on tool body. Reviewers comparing it to higher-end scopes have described the plastic as “a notch above toy grade” rather than a fault, but it is worth knowing if you wear heavy gloves or work in extreme temperatures.

A related quirk: the screen detaches from the handle in a two-piece design that is meant to make storage easier. It does pack into the case better that way, but I found the connection vulnerable enough that I ended up leaving it assembled in the kit.

How It Compares

The articulating inspection camera category got crowded in the past two years, so the DXZtoz dual-lens articulating borescope is competing with three serious alternatives.

DXZtoz vs Teslong TD450S

The Teslong TD450S is the perennial “best overall” pick from outlets like The Drive, with a 4.5-inch IPS screen, a centrally placed joystick, IP67 waterproofing, and a 5-foot semi-rigid gooseneck. In side-by-side image tests it produces slightly cleaner color and a more refined ergonomic feel than the DXZtoz.

The trade-off is the price: Teslong typically lands $30 to $50 above the DXZtoz, and the TD450S is a single forward-camera scope. If you mostly inspect engines and want a one-camera tool that feels premium in the hand, the Teslong is the safer pro pick. If you want dual lenses with a split-screen mode at a lower price, DXZtoz wins.

DXZtoz vs Depstech Dual-Lens

Depstech matches the DXZtoz on the dual-lens layout and split-screen viewing, including a 4.3-inch HD display and a side-mounted control wheel. Real-world testers like Bob Vila and digitalcameraworld put it in the same league for image quality.

Where the DXZtoz pulls ahead is the cable: the DXZtoz semi-rigid gooseneck holds its shape better than Depstech’s softer rubberized cord, which has more bounce in tight spaces. If you live in HVAC ducts or engine bays where the cable needs to stay where you bend it, the DXZtoz handles those routes more predictably.

DXZtoz vs Milwaukee M12

The Milwaukee M12 Auto Technician Borescope is the prosumer benchmark, with a removable camera whip, M12 battery sharing, and serious build quality. Hands-on tests routinely call its image quality excellent, but no better than the DXZtoz at distances under three inches.

The Milwaukee retails for $279 or more without the battery, which is roughly five to six times the DXZtoz price. Unless you already live in the M12 ecosystem and want a borescope that swaps batteries with your impact driver, the DXZtoz delivers most of the same diagnostic value for a fraction of the spend.

Final Verdict

The DXZtoz dual-lens articulating borescope earns a 4.6 out of 5 in my testing. The patented joystick locks where you point it, the dual front and side lenses with split view solve the “rotate the cable to see the wall” problem most articulating cameras force on you, and the slim 6.5 mm probe fits a 7 mm spark plug well that wider scopes cannot reach.

The two real caveats are the on-screen image quality (your saved JPEGs look better than the live preview) and the 5-foot cable length (grab the 10ft articulating borescope variant if you do plumbing). Neither one cancels out the value at this price.

Bottom line: for under $50 you get the most complete dual-lens inspection camera kit on Amazon, and the only one I would choose first for engine bay and HVAC duct work.
